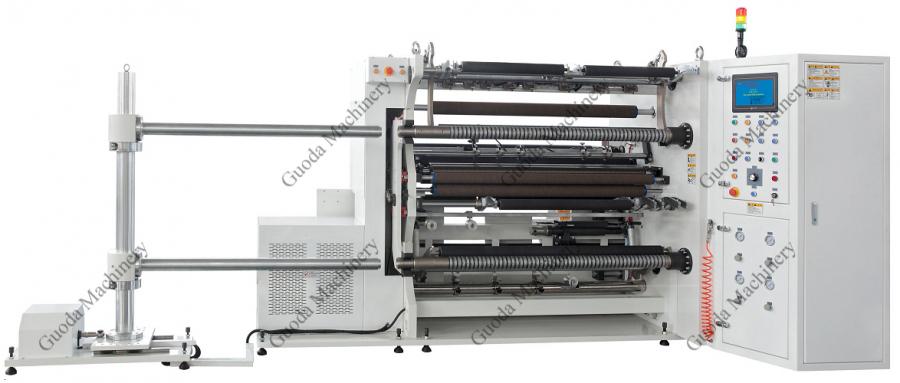

Slitting Machine (GDFQ-1300T)
Main Technical Parameter
| Technical Parameter | Value |
| Model | GDFQ-1300T |
| Diameter Of Unwind | Φ800MM |
| Diameter Of Rewind | Φ600MM |
| Slitting Width | 50-1300MM |
| Min.Slitting Width | 20MM |
| Unwind Paper Core Inner Diameter | 3" Or 6" |
| Max.Slitting Speed | 400M/MIN |
| EPC Precision | ≤ ±0.3MM |
| Machine Total Power | 17KW |
| Machine Weight | 4800KG |
| Machine Overall Dimension | L3400×W2500×H2040MM |
| Floor Space For Rewind Discharge Frame | L1550×W500MM |
GDFQ-T Series
- Machine Speed 400M/MIN
Suitable Material
- Laminated Film,BOPP,PET,PVC & Metalize Film.etc
Main Specifications
- Three-Motor Drive; Siemens PLC
- Unwind Material Auto Raise & Fall Hydraulic Type
- Unwind Material Roll Loading / Unloading Pneumatic Shaft-less Type
- Unwind Adopt With Splicing platform
- Unwind with Imported Web guide
- Rewind With Pneumatic Slip Air Shafts.
- Rewind Has Unloading Discharge System as assistant, Pneumatic Type
