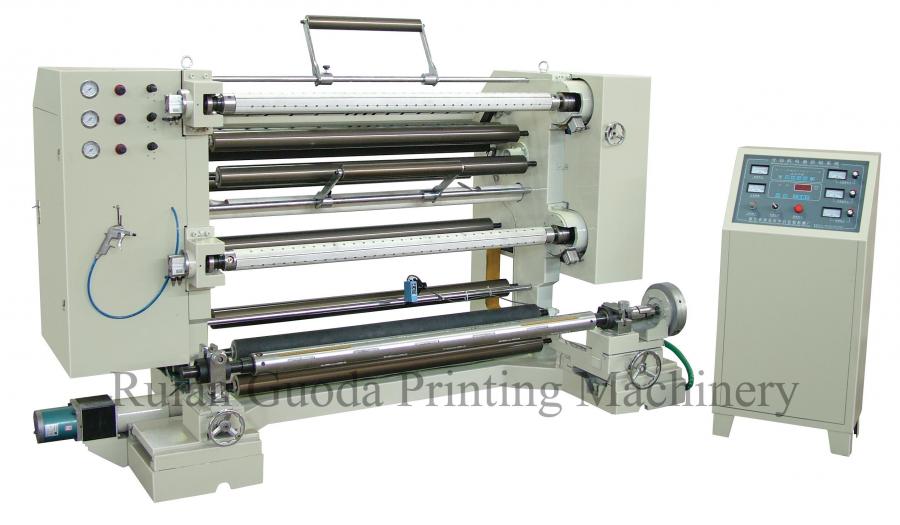

Slitting Machine (FQ-A)
Main Technical Parameter
| Technical Parameter | Value |
| Model | FQ-800A/1300A |
| Diameter Of Unwind | Φ600MM |
| Diameter Of Rewind | Φ400MM |
| Slitting Width | 50-800MM / 50-1300MM |
| Min.Slitting Width | 20MM |
| Unwind Paper Core Inner Diameter | 3’ Inch |
| Max.Slitting Speed | 140M/MIN |
| EPC Precision | ≤ ±0.3MM |
| Machine Total Power | 3KW |
| Machine Weight | 1200KG |
FQ-A Series
- Machine Speed 140M/MIN
Suitable Material
- Laminated Film,BOPP,PET,PVC & Metalize Film.etc
Main Specifications
- One-Motor Drive Without PLC
- Unwind Material Roll Loading / Unloading Shaft Type
- Unwind with Normal Photocell Type Web guide
- Rewind With Standard Air Shafts
- Manual Tension Control
